Innera Leisure

In desk

SKU

Socket Type

BENEFITS

  • a fancy in table power station operated by soft press mechanism.
  • Getting immediate access to power and data while keeping high quality feel and modern sleek design
  • ideal for meeting room
  • tables to be part of every surrounding
  • 3 years Warranty

More Details

Innera Leisure, a fancy in table power station operated by soft press mechanism. Getting immediate access to power and data while keeping high quality feel and modern sleek design. The Innera Leisure is ideal for meeting room tables to be part of every surrounding: from offices, meeting rooms, convention halls ,call centres, restaurants, hotels, labs, hospitals and many more. INSTALLATION CONFIGURATIONS In Desk /In Table it mainly being placed in meeting room table, conference tables, desk and fine surfaces. Seating it can be Installed on the surface of almost any seating systems such as sofas, couches, chairs, waiting benches, auditoriums, and more. providing great hidden solution with close & convenient access to power, charge, data and Telecom connections.

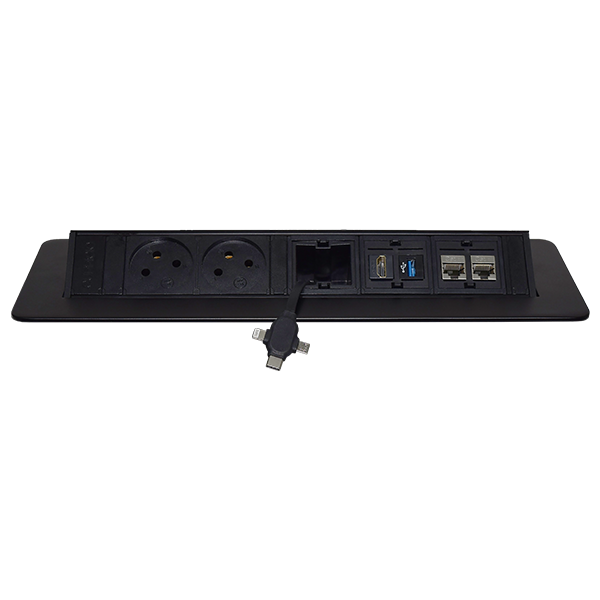

prosuct image



Power & Temperature: Operating voltage: 230VAC 50VHz Maximum current: 16A Work Temperature: up to 70°C Structure & color: Flush, solid and durable structure, you will find Innera Leisure is reliable unit with long life expectation. Innera Leisure is available in Silver anodized complete cover with black sockets. Custom colors available on demand – minimum order will be requiered. Materials: cover - aluminium, sockets - PC. Modules & combination: The Innera Leisure can be configured with a combination of power, data, communication, or any other Keystone system component. Cable and connection to power: The Innera Leisure is supplied with 0.4 meter cable (HO5VV-F 3x1.5mm2) with male GST 18/3 connector. In order to connect the product to power you should buy the power cable separately. Testing: 100% testing continuity, polarity, insulation & earth Certification: SII test certification Warranty: 3 years Warranty by German registered company Installation: Power saw, Power drill and hole cutter required, please read the installation instruction prior to installation. Packing: each item in a box

sketches

prosuct skecth

Technical Details


Catalog No Model Description Color Length (L) mm Width (W) mm Height (H) mm
0727363256751 IL-53C2 3 IL sockets & 2.4A USBx2 Charge White 332.6 114 95
0769978898100 IL-52 2 IL sockets & 6 keystones Black 332.6 114 95
0769978898094 IL-53 3 IL sockets & 4 keystones White 332.6 114 95
0769978898087 IL-54 4 IL sockets & 2 keystones Silver 332.6 114 95
0769978898070 IL-55 5 IL sockets Silver 332.6 114 95
0769978898056 IL-43 3 IL sockets & 2 keystones Silver 289.6 114 95
0769978898049 IL-44 4 IL sockets Silver 289.6 114 95
0769978898032 IL-32 2 IL sockets & 2 keystones Silver 246.6 114 95
0769978898025 IL-33 3 IL sockets Silver 246.6 114 95
0727363256874 IL-22 2 IL sockets White 203.6 114 95
0727363256867 IL-22 2 IL sockets Black 203.6 114 95
