Power Distribution Unit – 1U ”19

Power Distribution Units

SKU

Socket Type

    BENEFITS

    • The 19’’ - 1U PDU’s designed for installation in server and cabling racks
    • Power Distribution Units are carefully designed to provide maximum reliability to power multiple devices.
    • Choose from a variety of quality Power Distribution Units the require model according to: sockets, plug, cable type and accessories.
    • The eufficio PDU can be configured with MCB/RCCB/C13/C19/indication led
    • The eufficio PDU Has Built in input cable (HO5VV-F) with israeli plug/CEE plug
    • 3 years Warranty

    More Details

    Power Distribution Units are carefully designed to provide maximum reliability to power multiple devices. Choose from a variety of quality Power Distribution Units the require model according to: sockets, plug, cable type and accessories. INSTALLATION CONFIGURATIONS Power Distribution Unit The 19’’ - 1U PDU’s designed for installation in server and cabling racks

    prosuct image

    Power & Temperature: Operating voltage: 230VAC 50VHz Maximum current: 16A Work Temperature: up to 70°C Structure & color: Solid and durable structure, you will find eufficio PDU reliable unit with long life expectation. Materials: housing - aluminium, sockets - PC. Modules & combination: The eufficio PDU can be configured with MCB/RCCB/C13/C19/indication led Cable and connection to power: The eufficio PDU Has Built in input cable (HO5VV-F) with israeli plug/CEE plug. Testing: 100% testing continuity, polarity, insulation & earth Certification: SII test certification Warranty: 3 years Warranty Installation: supplied with installation brackets for attaching to rack in various angels. Please read the installation instruction prior to installation. Packing: each item in a box

    sketches

    prosuct skecth

    Technical Details

    Catalog NoModelOutput receptaclesInput plug typeCord typeCord langthProtectionLed Indication

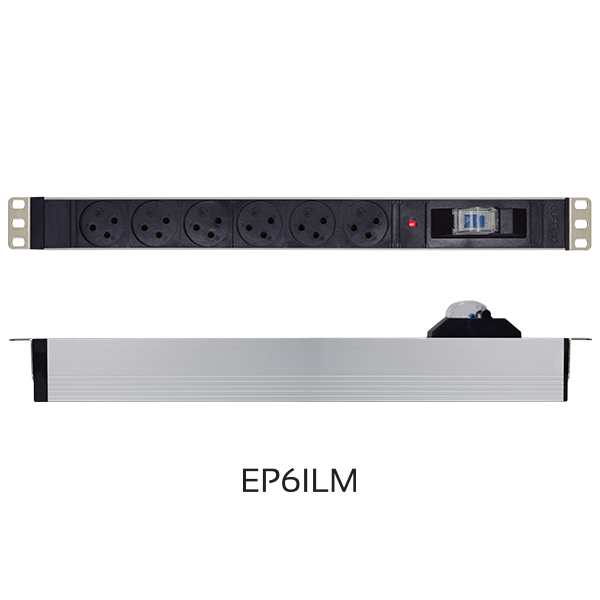

    0726811930694EP6ILM6 IL socketsIL3X1.5mm²3mMCB
    0726811930755EP6ILM6 IL socketsCEE3X2.5mm²5mMCB

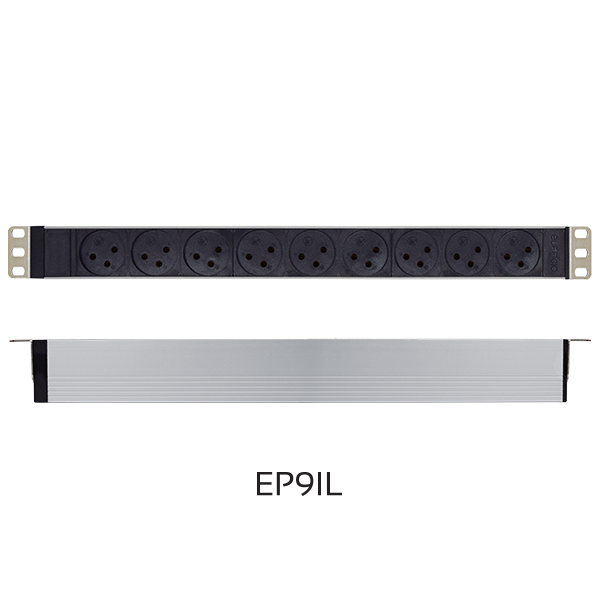

    0726811930724EP9IL9 IL socketsIL3X1.5mm²3m-----
    0726811930731EP9IL9 IL socketsIL3X1.5mm²5m-----

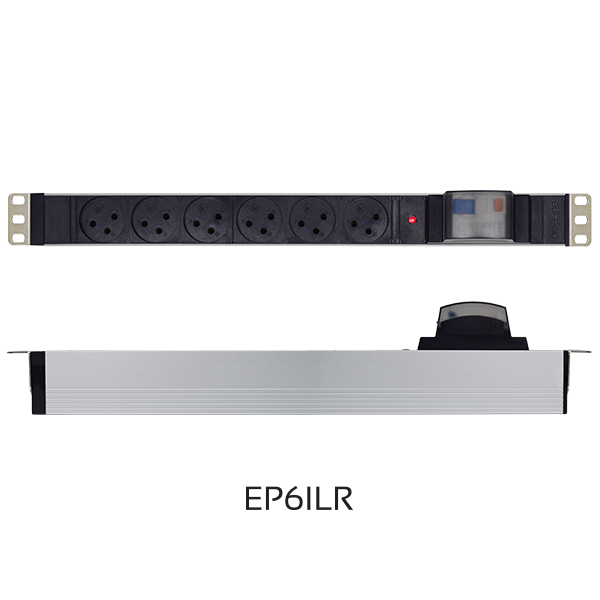

    0726811930717EP6ILR6 IL socketsIL3X2.5mm²3mRCCB

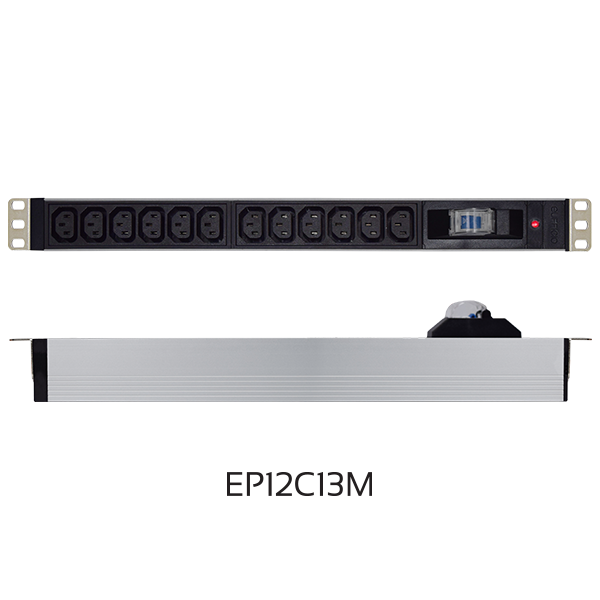

    0726811930809EP12C13M12xC13 socketsIL3X1.5mm²3mMCB
    0726811930779EP6C19M6xC19 socketsIL3X1.5mm²5mMCB
