Monitored PDU (Local)

Power Distribution Units

SKU

Socket Type

    BENEFITS

    • PDU’s designed for installation in server and cabling racks
    • Incorporate integral Local Meter for Voltage / Current monitoring
    • Power Distribution Units are carefully designed to provide maximum reliability to power multiple devices.
    • Choose from a variety of quality Power Distribution Units the require model according to: sockets, plug, cable type and accessories.
    • The eufficio PDU can be configured with MCB/RCCB/C13/C19/indication led
    • 3 years Warranty
    datasheets   download icon

    More Details

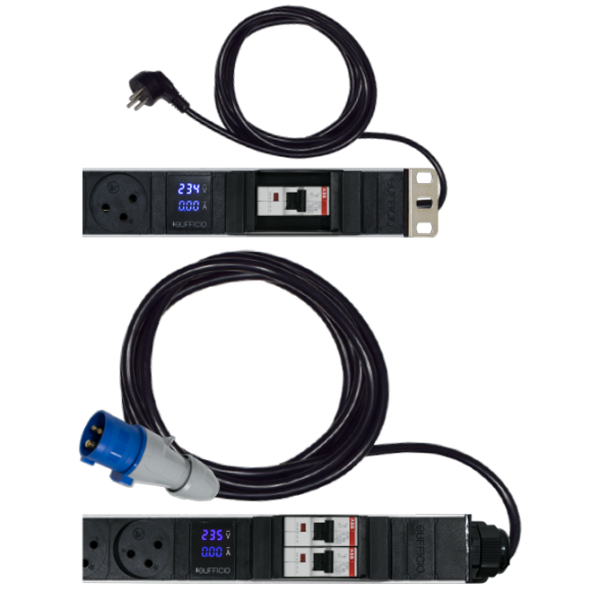

    Installation configurations: The 19’’ - 1U PDU’s designed for installation in server and cabling racks Local Meter: Integrated module within the unit that gives an indication of the input voltage level and power consumption.

    prosuct image



    Power & Temperature:

    Operating voltage: 250VAC 50VHz

    Maximum current: 16A/32A

    Work Temperature: up to 70°C

    Testing: 100% testing continuity, polarity, insulation & earth.

    Certification: SII test certification.

    Warranty: 3 years Warranty.

    Packing: each item in a box.

    sketches

    prosuct skecth
    datasheets   download icon

    Technical Details

    Catalog NoModelOutput receptaclesInput plug typeCord typeCord langthProtection ABBProduct Length
    0727363258236EP6ILMD6 IL socketsIL3X1.5mm²3mMCB444mm
    0727363258991EP6ILMD6 IL socketsCEE3X2.5mm²5mMCB444mm

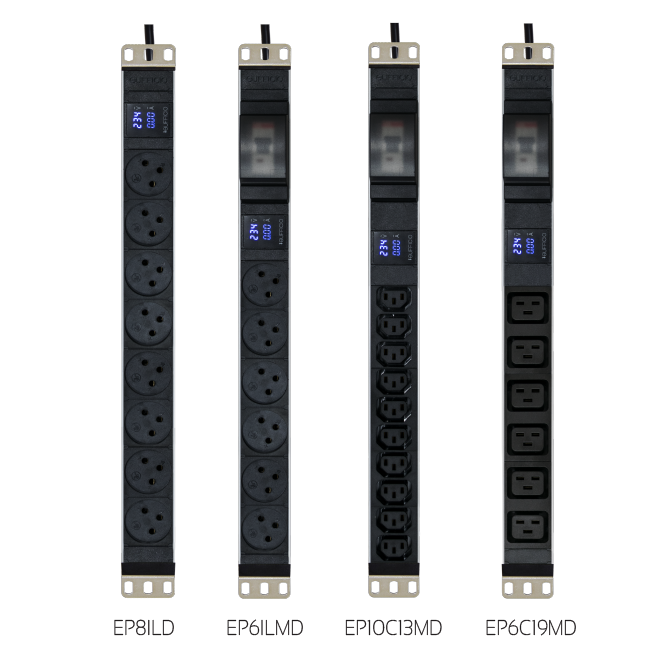

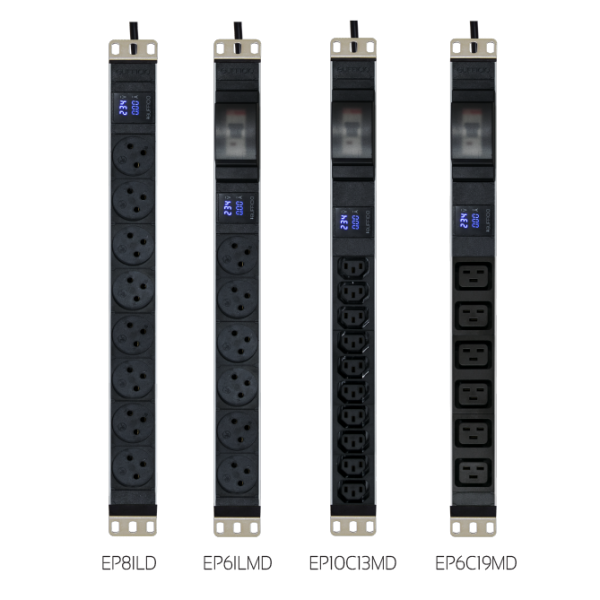

    0727363258243EP8ILD8 IL socketsIL3X1.5mm²3m------444mm
    0727363258281EP10C13MD10xC13 socketsCEE3X2.5mm²5mMCB444mm
    0727363258274EP6C19MD6xC19 socketsCEE3X2.5mm²5mMCB444mm
    0727363259103EP12C13MD12xC13 socketsCEE3X2.5mm²3mMCB494mm
    0727363258250EP12ILMD12 IL socketsIL3X1.5mm²5mMCB702mm
    0727363259004EP12ILMD12 IL socketsCEE3X2.5mm²5mMCB702mm
    0727363258304EP12C134C19MD12xC13 & 4xC19 socketsCEE3X2.5mm²5mMCB652mm
    0727363258298EP24ILMD24 IL socketsCEE3X2.5mm²5mMCB1218mm
    0727363258342EPMIXILMD20xC13 & 4xC19 & 4 IL socketsCEE3X4mm²5mMCB1102mm
    0727363258366EP32A12ILMD12 IL socketsCEE 3x32A3X6mm²5mMCB862mm
    0727363258373EP32A24ILMD24 IL socketsCEE 3x32A3X6mm²5mMCB1387mm
    0727363258359EP32AMIXILMD20xC13 & 4xC19 & 6 IL socketsCEE 3x32A3X6mm²5mMCB1282mm
