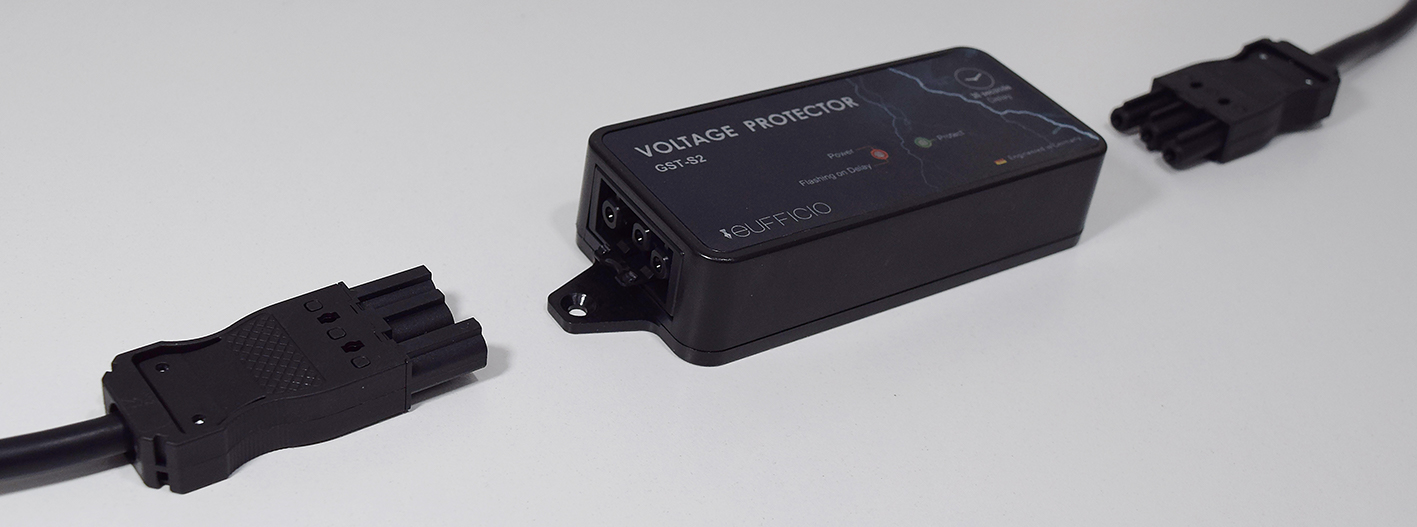

The GST-S2 is a Smart Voltage protector with Built-In software and Automatic Voltage switch Function Supplying full protection for all the connected devices against over voltage , under voltage, spikes, surges , lightning and fire. INSTALLATION CONFIGURATIONS Under Desk /Under Table In any requirement of Hidden power and data station beneath the surface with very easy installation procedure. On The Wall it can be mounted on walls, whenever power and data stations are required with avoiding the need to make changes in the construction or to use electrician.
Power & Temperature: Operation voltage & Frequency: 230VAC 50/60 Hz Watts: 3600W max Max Load current: 16A Operation Temperature: -10°C to 40°C IP Rate: IP20 General consumption: <0.1A Surge Protection Device Rate: Class III Total current absorb capability: 12,000A Total energy absorb capability: 350 Joule Surge Protection response time: <10¯⁹ incursion current: 100 A Delay time: 30 Seconds Over-voltage disconnect: 270VAC Over-voltage reconnect: 255VAC Under-voltage disconnect: 180VAC Under-voltage reconnect: 190VAC Max operating voltage (Uc): 330VAC Over Voltage response time: <0.02 Seconds Under Voltage response time: <0.5 seconds High-Heat disconnect: 70°C High-Heat reconnect: 45°C Structure & color: Compact, but with solid and durable structure, you will find Connecto Key is reliable unit with long life expectation. Materials: PC. connection to power: The Voltage Protector Has Built in Male GST connecter and Female GST connecter. In order to connect the product to power you should buy the power cable separately. Testing: 100% testing continuity, polarity, insulation & earth Certification: BS 5733, CE Warranty: 3 years Warranty Installation: Please read the installation instruction prior to installation Packing: each item in a box
|Catalog No||Model||Description||Length (L) mm||Width (W) mm||Height (H) mm|
