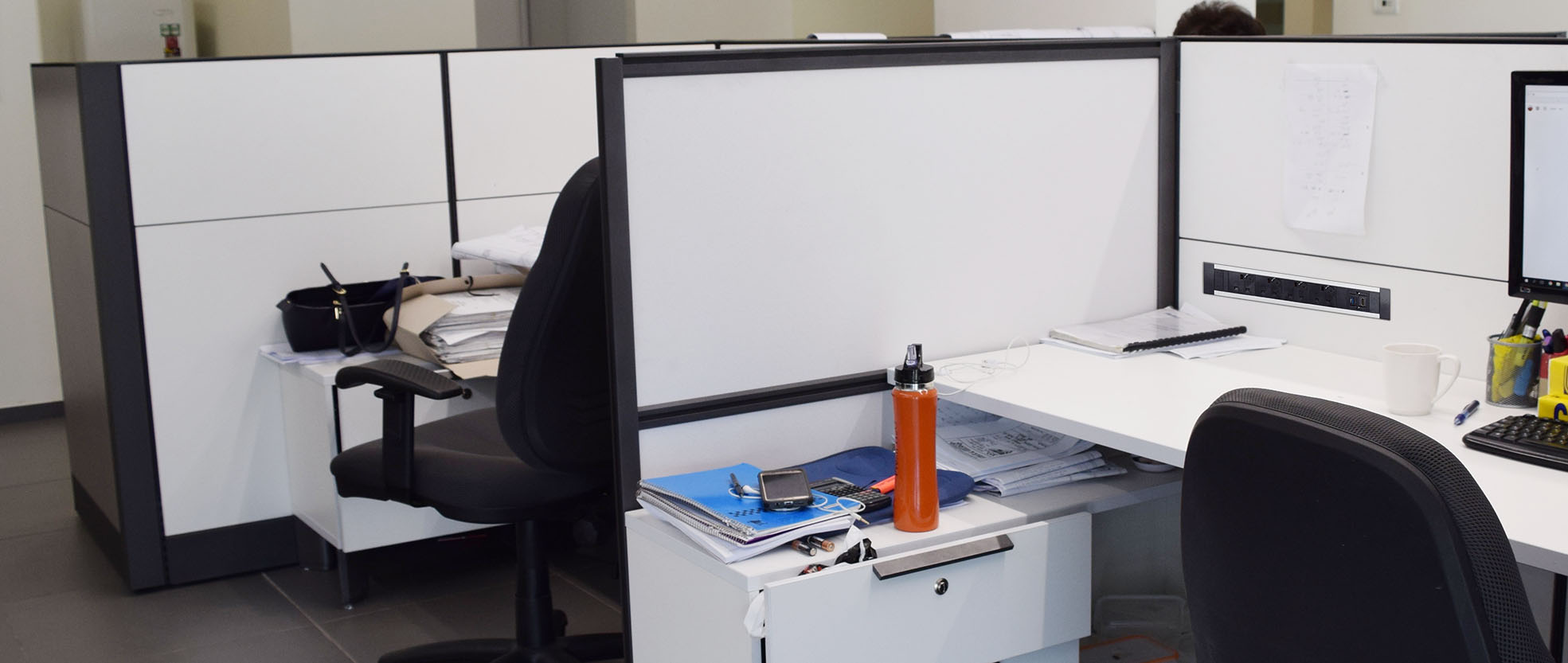

In Desk
In any requirement of Hidden power and data station beneath the surface with very easy installation procedure.

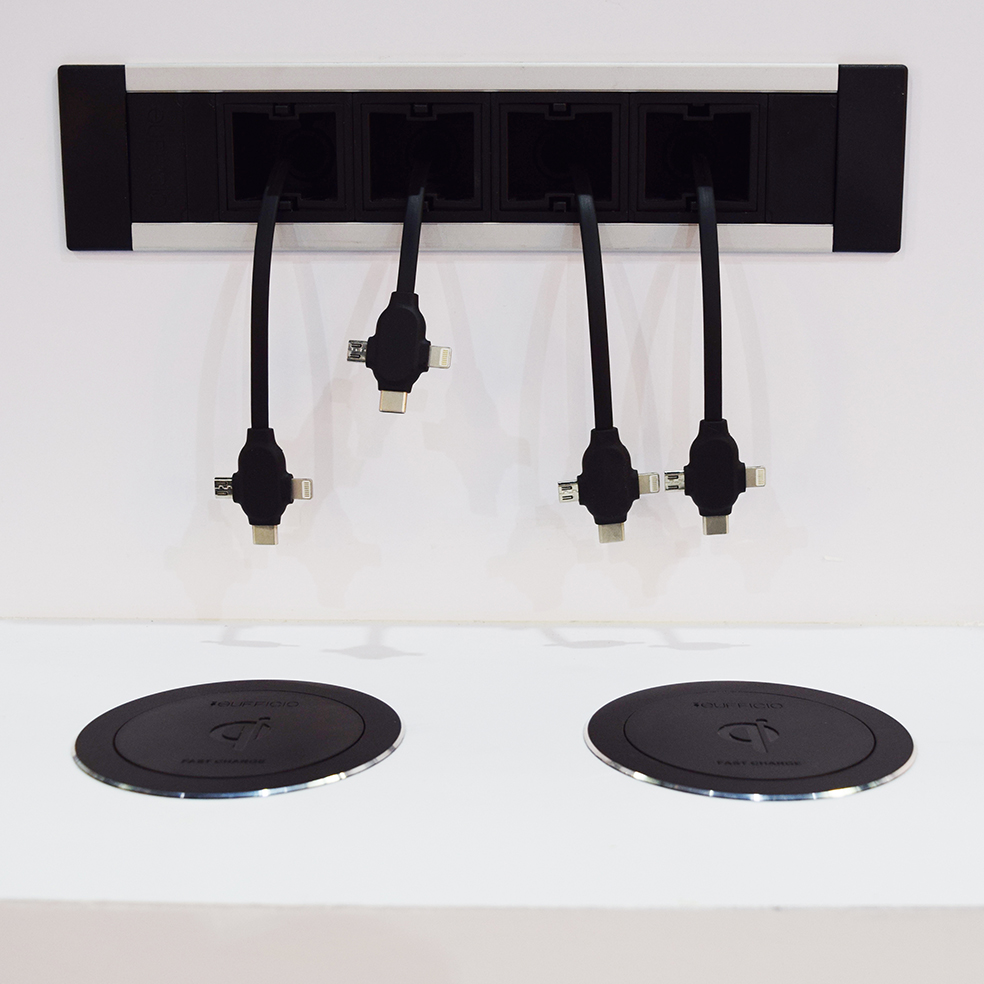

In Wall / In Panel
it can be mounted in walls/panels, whenever power and data stations are required with avoiding the need to make changes in the construction or to use electrician.
Power & Temperature:
Operating voltage: 230VAC 50VHz
Maximum current: 13A
Work Temperature: up to 70°C
Structure & color:
Compact, but with solid and durable structure, you will find Innera Piatto is reliable unit with long life expectation. Innera Piatto is available in Silver anodized frame - black sockets and end caps. Custom colors available on demand – minimum order will be required. Materials: cover - aluminium, sockets - PC.
Modules & combination:

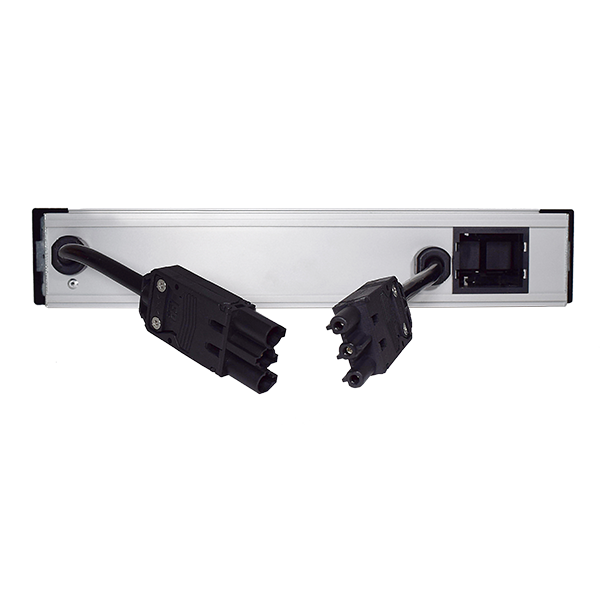

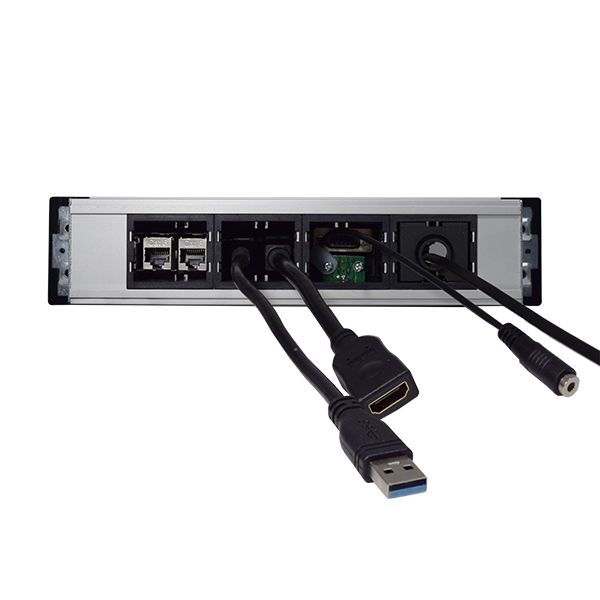

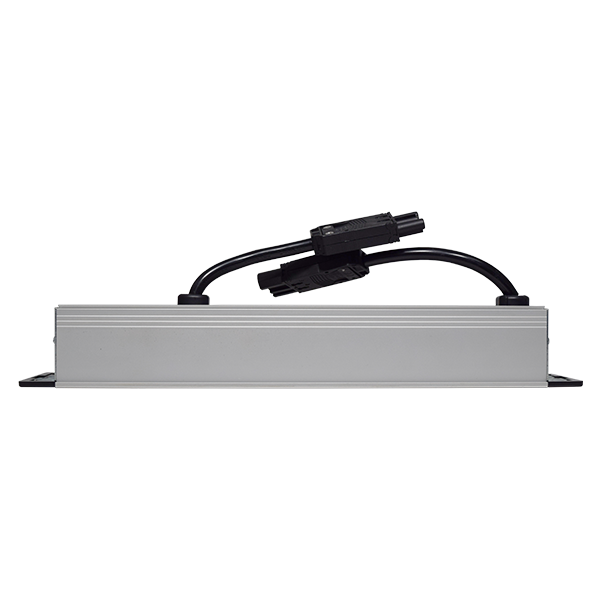

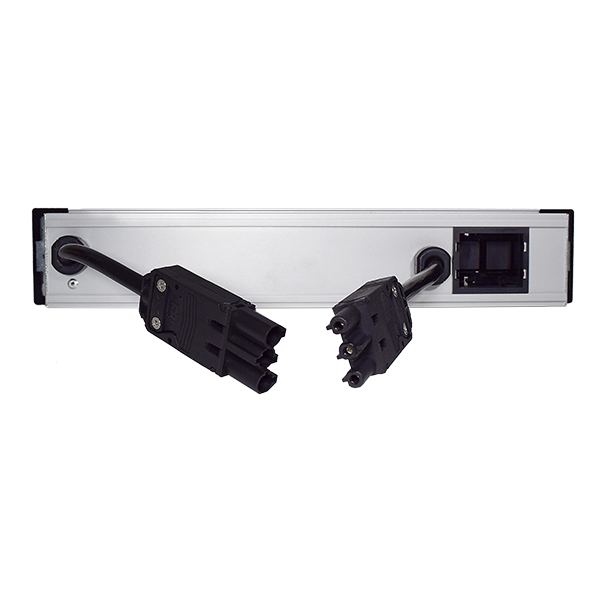

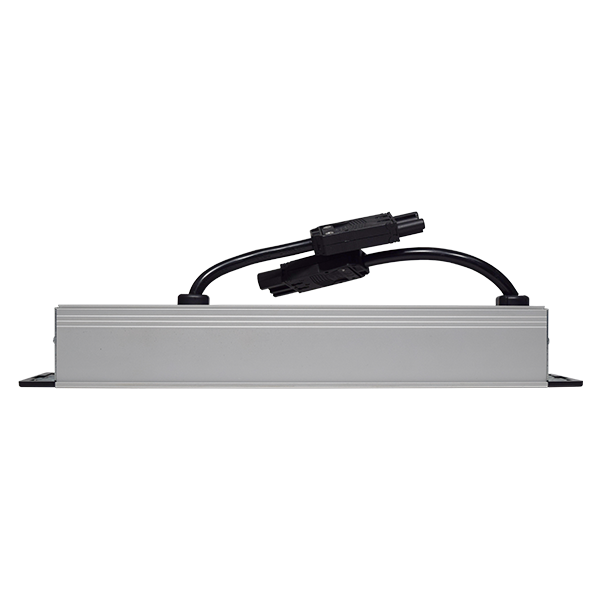

The Connecto Key can be configured with power, Charge, Data, communication and more. Cable and connection to power: * The Innera Piatto is supplied with: INPUT - 0.1 meter cable (HO5VV-F 3x1.5mm2) with male GST 18/3 connector OUTPUT - 0.1 meter cable (HO5VV-F 3x1.5mm2) with female GST 18/3 connector. In order to connect the product to power you should buy the power cable separately.
Testing: 100% testing continuity, polarity, insulation & earth
Certifications: BS 5733, CE
Warranty: 3 years Warranty

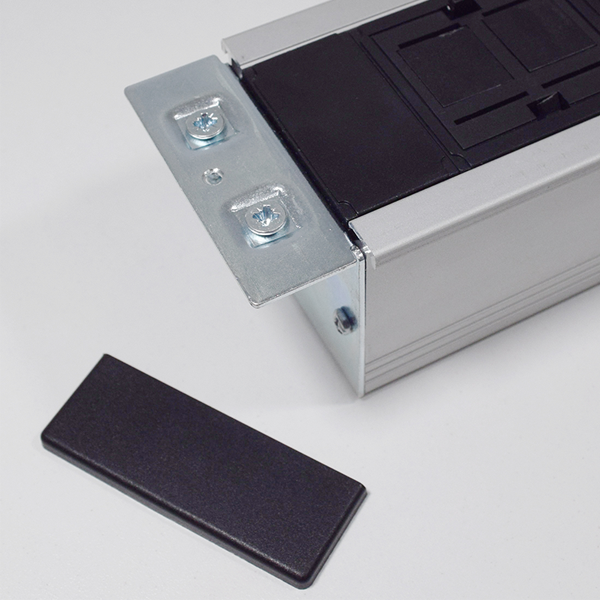

Installation: No Tools required, supplied with installation kit for attaching to a desired surface. Please read the installation instruction prior to installation.
Packing: each item in a box
* Only on models with power socket
Catalog No | Model | Description | Length (L) mm | Width (W) mm | Height (H) mm |
0726811932155 | IP-86G | 6 BS sockets , 4 keystone adapters | 560 | 48.2 | 52 |
0726811927571 | IP-64G | 4 BS sockets , 2 keystone adapters | 470 | 48.2 | 52 |
0726811927625 | IP-43G | 3 IBS sockets , 2 keystone adapters | 262 | 48.2 | 52 |
0726811931813 | IP-20 | 4 keystone adapters | 176 | 48.2 | 52 |

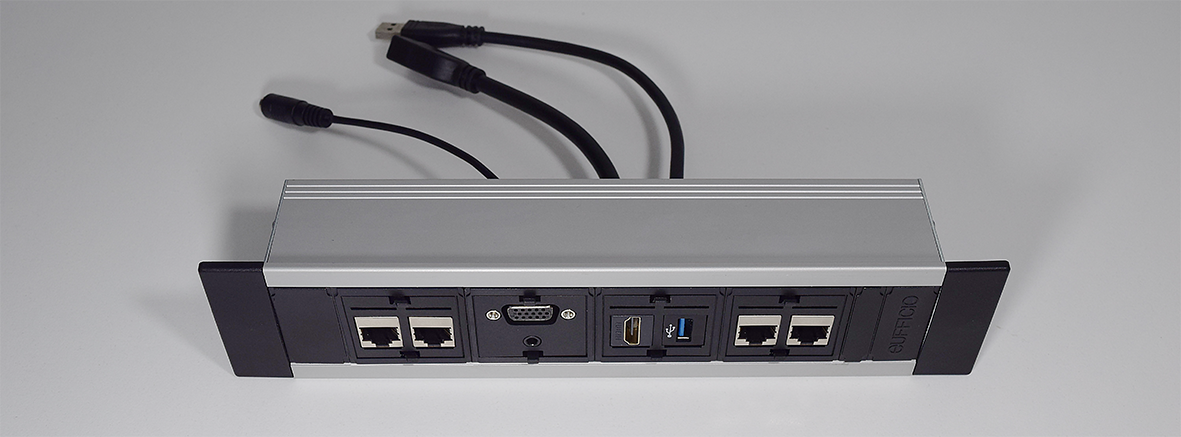

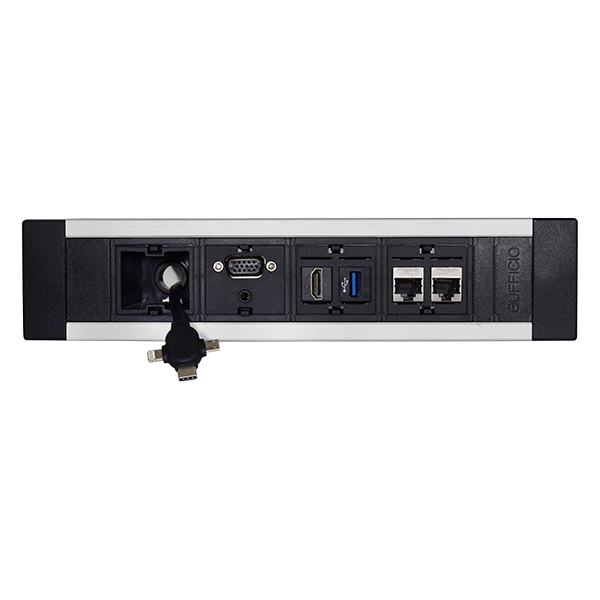

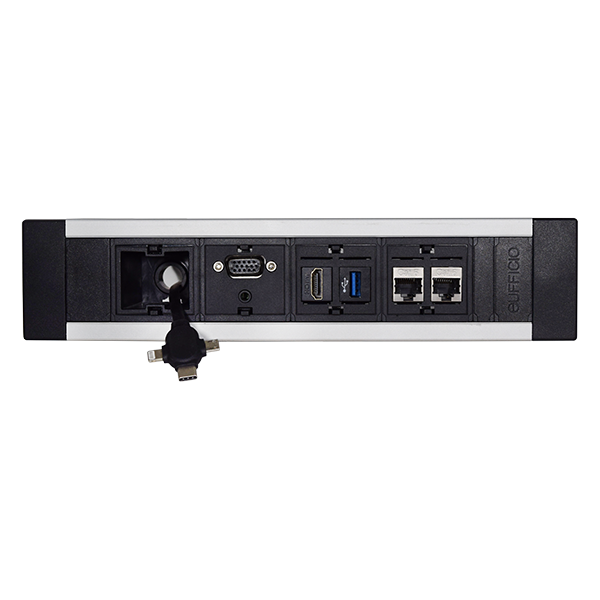

0726811931820 | IP-40 | 8 keystone adapters | 262 | 48.2 | 52 |
0726811927588 | IP-55G | 5 BS sockets | 430 | 48.2 | 52 |
0726811927670 | IP-32G | 2 BS sockets , 2 keystone adapters | 262 | 48.2 | 52 |
0726811927656 | IP-33G | 3 BS sockets | 262 | 48.2 | 52 |

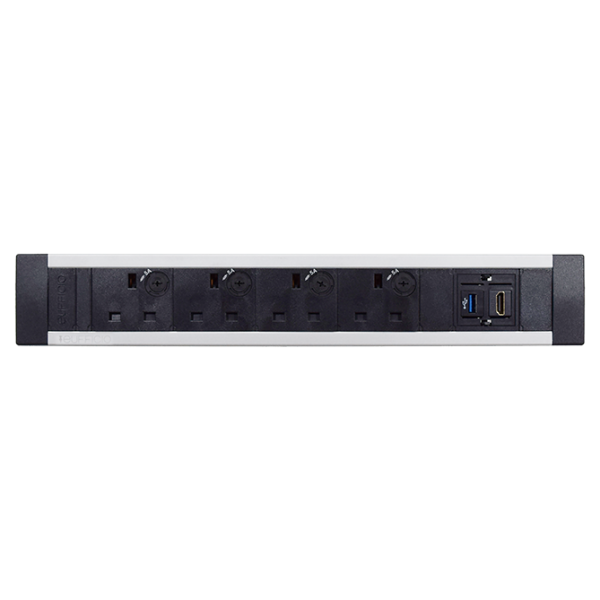

0726811927601 | IP-54G | 4 BS sockets , 2 keystone adapters | 430 | 48.2 | 52 |
